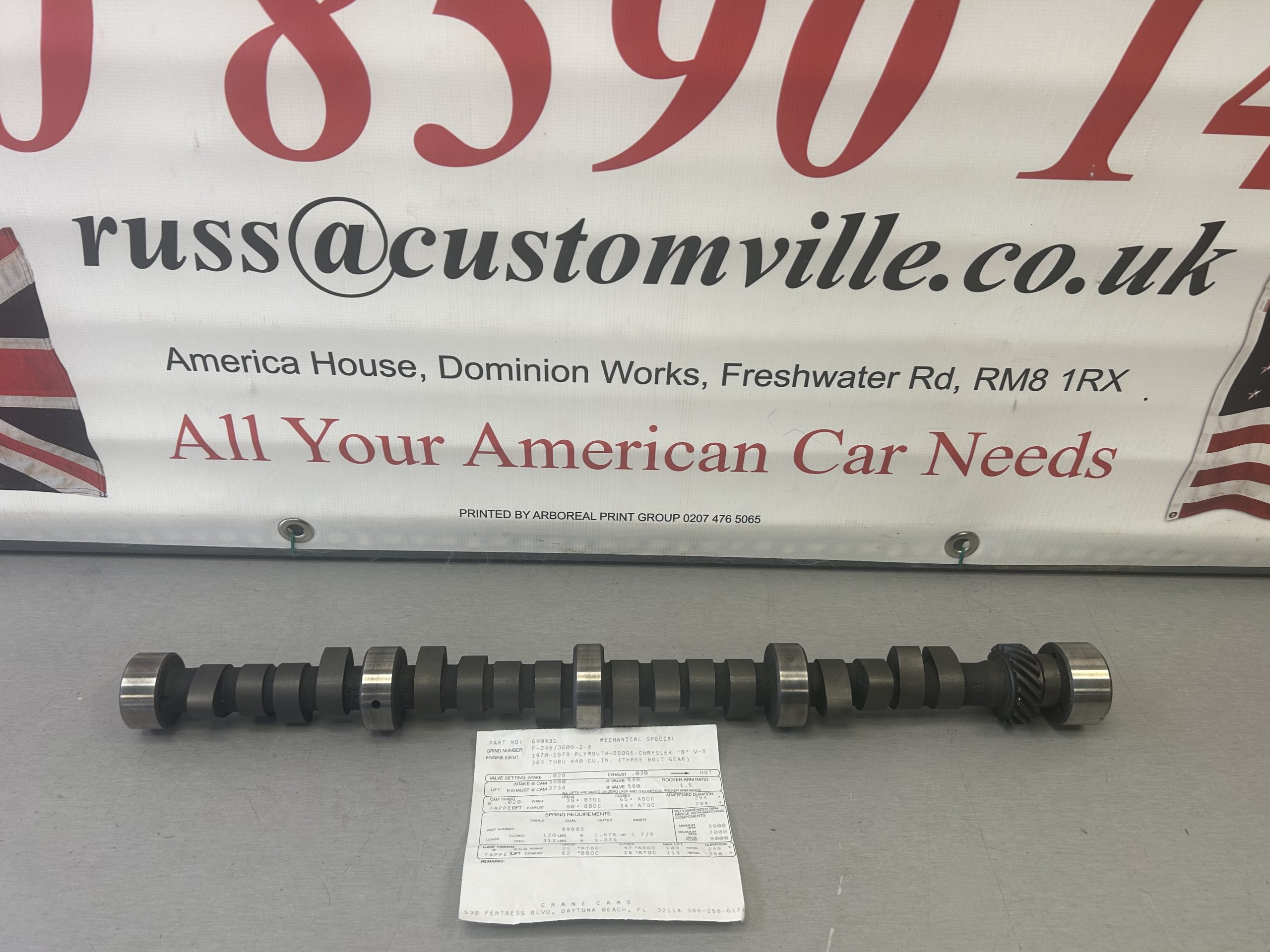

Crane Cams 680931 Mechanical Flat Tappet Camshaft – Chrysler Big Block 383–440 – 3-Bolt

Upgrade the performance of your Mopar big block with the Crane Cams 680931 Mechanical Flat Tappet Camshaft. Designed for Chrysler, Dodge, and Plymouth 383–440 B-Series and RB-Series V8 engines with a 3-bolt timing gear, this high-performance camshaft delivers excellent mid-range torque and strong top-end horsepower for street/strip and bracket racing applications.

Featuring 284°/294° advertised duration and .540″/.560″ valve lift, the 680931 (Grind F-248/3600-2-8) is intended for engines with increased compression, upgraded valvetrain components, and a manual transmission or high-stall automatic converter.

Vehicle Compatibility

Fits Chrysler B/RB Big Block V8 engines, including:

• Chrysler 383 V8
• Chrysler 400 V8
• Chrysler 413 V8
• Chrysler 426 Wedge V8
• Chrysler 440 V8

Suitable for many Dodge, Plymouth and Chrysler muscle car applications using a 3-bolt camshaft.

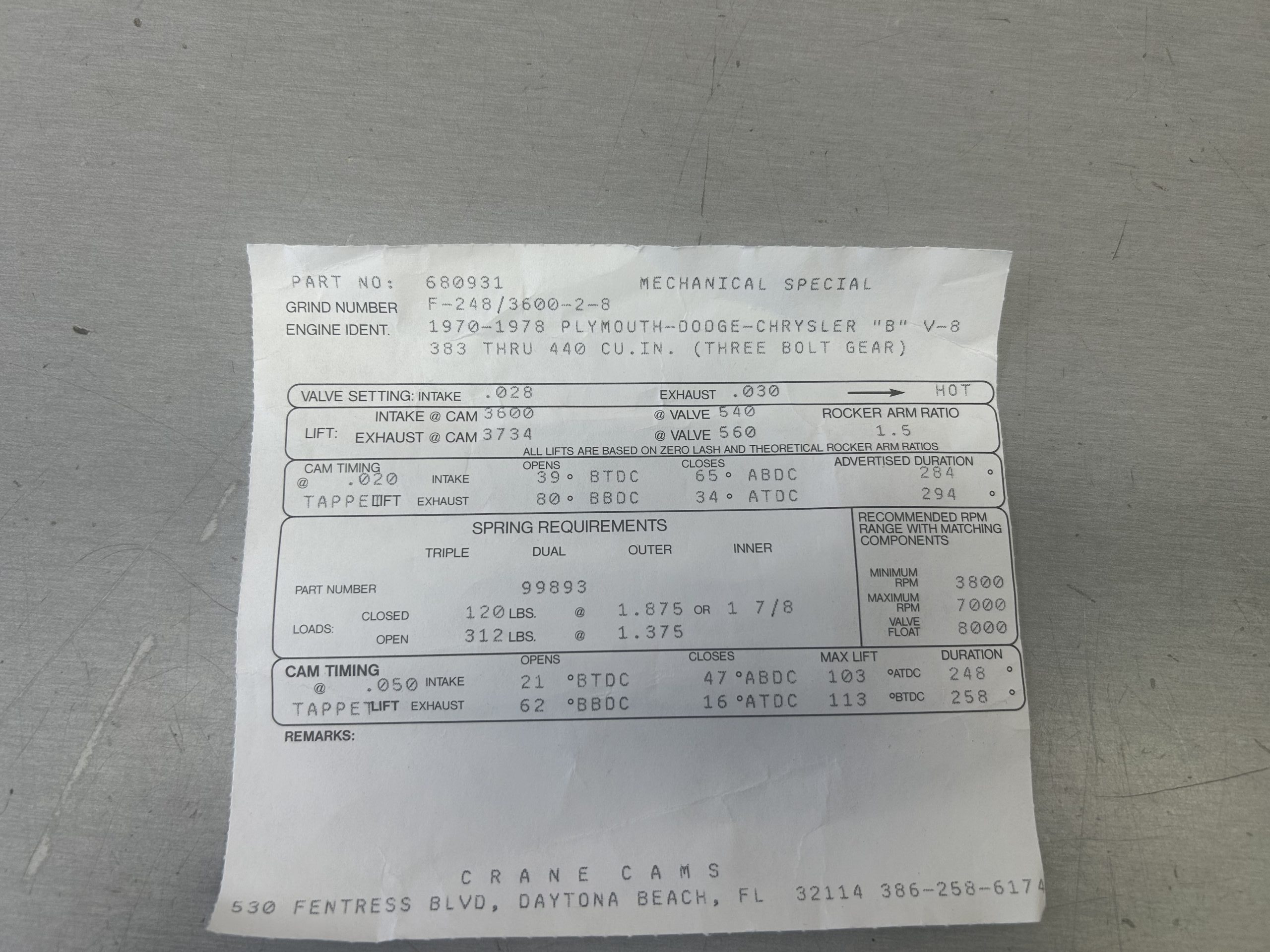

Specifications

• Manufacturer: Crane Cams
• Part Number: 680931
• Grind Number: F-248/3600-2-8
• Product Type: Camshaft
• Camshaft Style: Mechanical Flat Tappet
• Timing Gear: 3-Bolt
• Advertised Duration: 284° Intake / 294° Exhaust
• Duration @ .050″: 248° Intake / 258° Exhaust
• Valve Lift: .540″ Intake / .560″ Exhaust
• Lobe Separation Angle: 108°
• Valve Lash (Hot): .028″ Intake / .030″ Exhaust
• Recommended RPM Range: 3,800–7,000 RPM
• Sold As: Each

Key Features

• Crane Cams performance mechanical flat tappet camshaft
• Designed for Chrysler 383–440 Big Block engines
• 3-bolt timing gear configuration
• Strong mid-range torque and upper RPM horsepower
• Excellent choice for bracket racing and aggressive street performance
• Compatible with manual transmissions or automatic transmissions with a 3,000+ RPM stall converter
• Recommended for 10.5:1–12.0:1 compression ratio engines
• Precision-ground for consistent performance and durability

Ideal For

• Mopar muscle car restorations with performance upgrades
• Street/strip big block builds
• Bracket racing
• High-performance 383 and 440 engines
• Custom engine rebuilds
